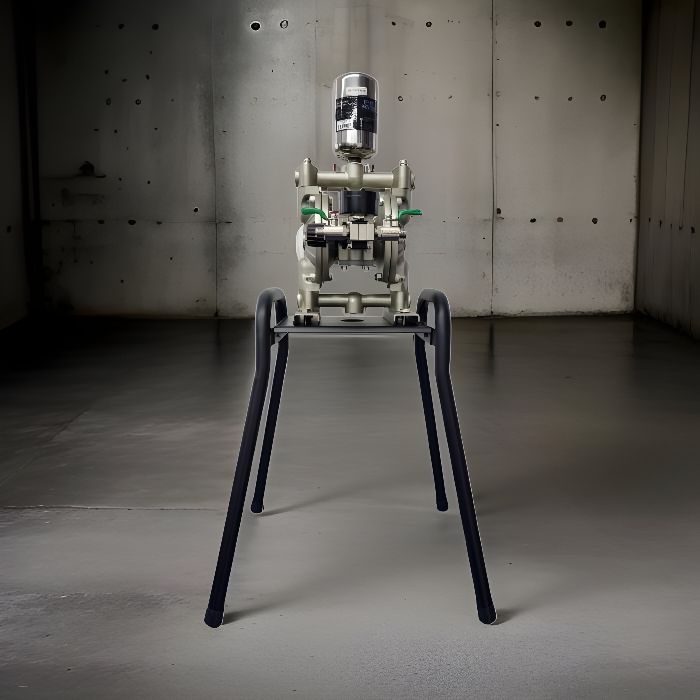

Air Double Diaphragm Pump
In stock
Only 3 left
SKU
FMT6033
Description
Air operated double diaphragm pump for paint spraying
Read More
Free Shipping Free Shipping on all orders over £175 (Ex-VAT)
Order Delivery Next Day Shipping option available, if you order before 4pm
Description
This air operated double diaphragm pump makes spraying large areas quick and easy.
Connect the pump to an air supply, insert the fluid suction pick up pipe into the paint and connect a pressure feed spray gun to the air supply and you are spraying.
Using this pump means no waste of time filling and refilling gravity pot or even pressure tanks.
Cleaning is easy, just pump water or solvent through the pump and hose and its ready for next time.
As you only pick up the paint you need, there is less wastage
Is capable of using with two spray guns.
Specification
- Supplied with air regulator & gauge
- Supplied with fluid regulator
- Max operating pressure 71PSI / 4.9 BAR
- Min operating pressure 14.5PSI / 1 BAR
- Ratio 1:1
- Pump speed 80-160 cycles per min
- Air inlet 1/4”
- Fluid inlet 1/2”
- Fluid outlet 3/8”
- Overall height 750mm
- Max 10ltrs/Min
- Aluminium construction
